Freestyle 2 Ascent Multi Tent

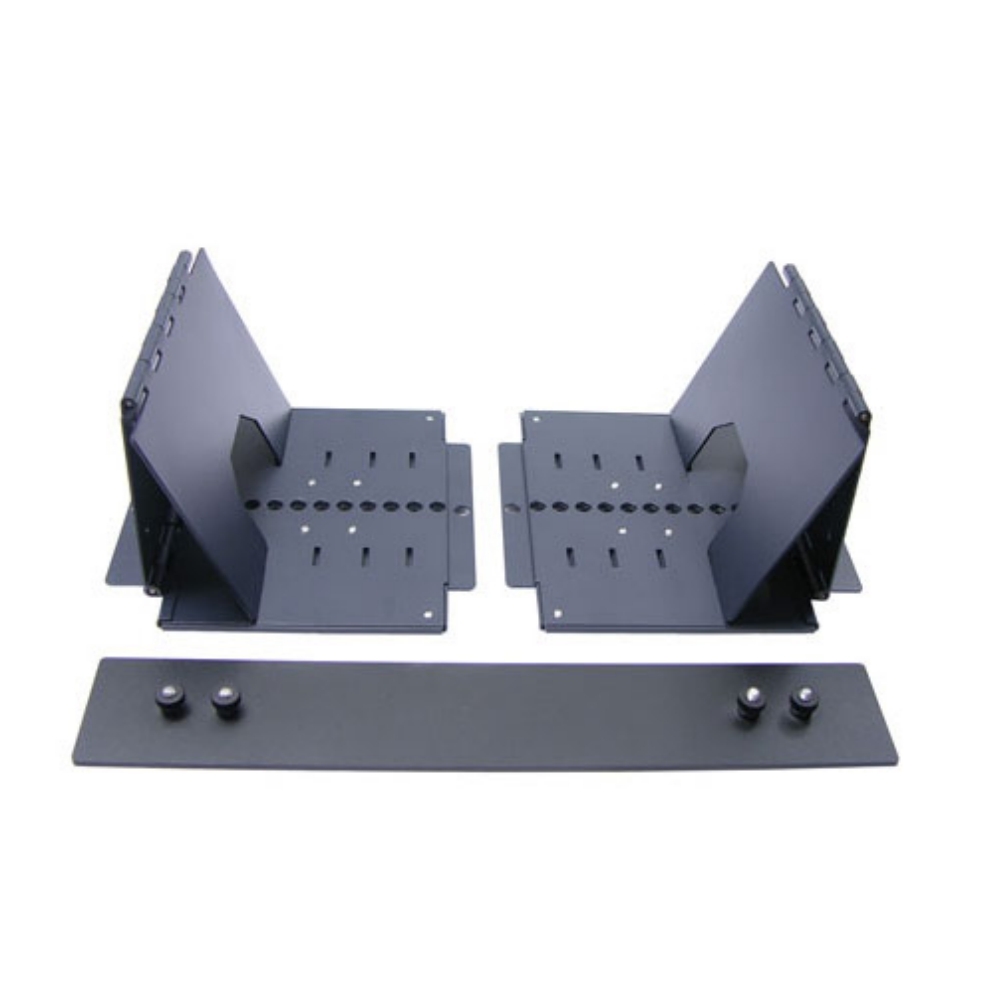

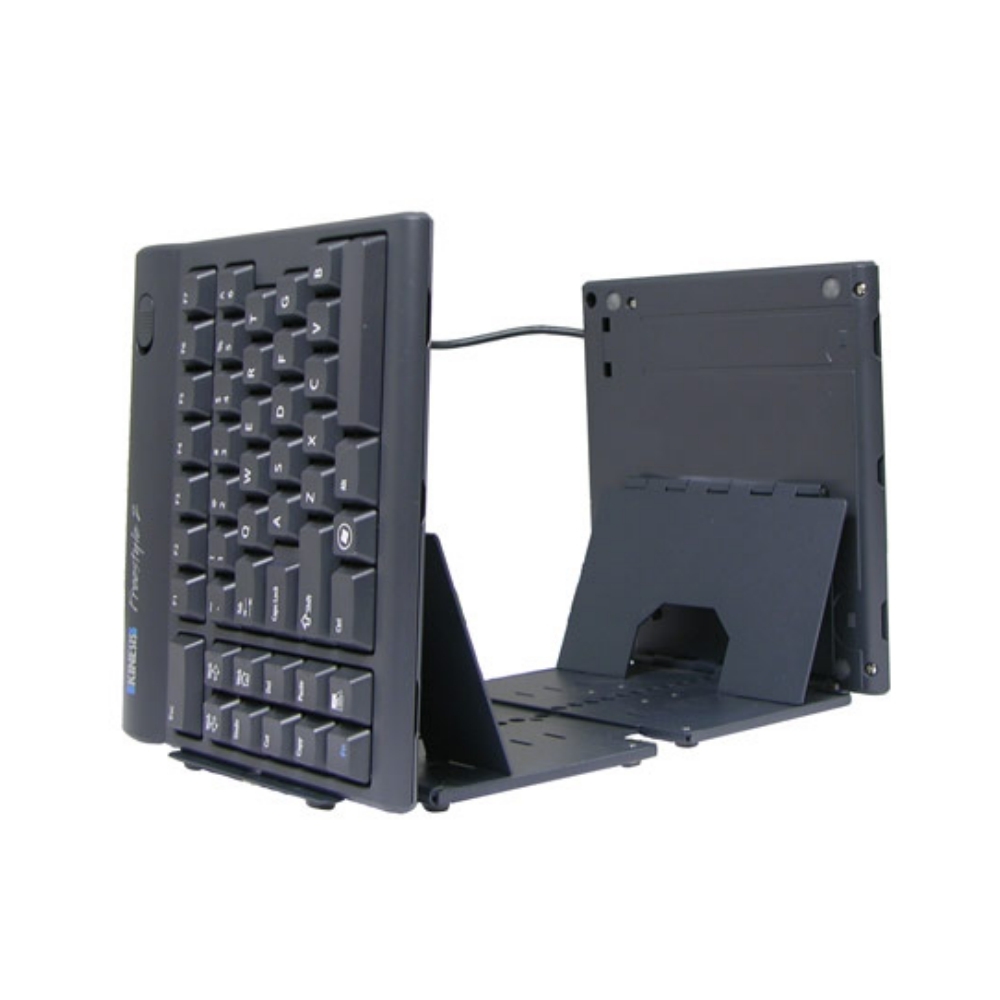

The Kinesis Freestyle 2 Ascent Multi Tent allows the user to create angle settings for the Freestyle 2 keyboard from 20 to 90 degrees. The two sections can be either linked together or separated to create the ultimate in  a customised keyboard experience. Simply attach to your Freestyle 2 keyboard and you are ready to go.

Tenting angles may be independently set for each keying module in the range of 20 to 90 degrees, in 10 degree increments. Left/right separation is limited only by the length of the keyboard’s linking cable.
The standard 20cm separation is adequate for most users, but the 50cm linking cable is recommended for greater flexibility.
The Ascent can also be used in conjunction with the optional Freestyle2 palm supports, most aptly suited for the lower tent settings of 20, 30 and 40 degrees.
Freestyle2 keyboard sold separately.*Tenting is the elevation of the center portion of your split keyboard. By raising your thumbs, your forearms muscles become relaxed reducing pronation, resulting in significantly improved comfort and blood flow.

Dimensions:

Freestyle2 keyboard 50cm cable without linking plate installed:

Maximum separation at:

• 20 degree tent – 565mm
• 30 degree tent – 578mm
• 40 degree tent – 584mm
• 50 degree tent – 591mm
• 60 degree tent – 594mm
• 70 degree tent – 594mm
• 80 degree tent – 610mm
• 90 degree tent – 616mm

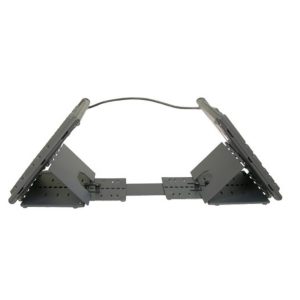

Freestyle2 keyboard 50cm cable with linking plate installed:

Maximum separation at:

• 20 degree tent – 213mm
• 30 degree tent – 241mm
• 40 degree tent – 286mm
• 50 degree tent – 330mm
• 60 degree tent – 264mm
• 70 degree tent – 308mm
• 80 degree tent – 368mm
• 90 degree tent – 445mm

Freestyle2 keyboard 20cm cable with or without linking plate installed:

Maximum separation at:

• 20 degree tent – 213mm
• 30 degree tent – 238mm
• 40 degree tent – 248mm
• 50 degree tent – 248mm
• 60 degree tent – 260mm
• 70 degree tent – 264mm
• 80 degree tent – 270mm
• 90 degree tent – 279mm
