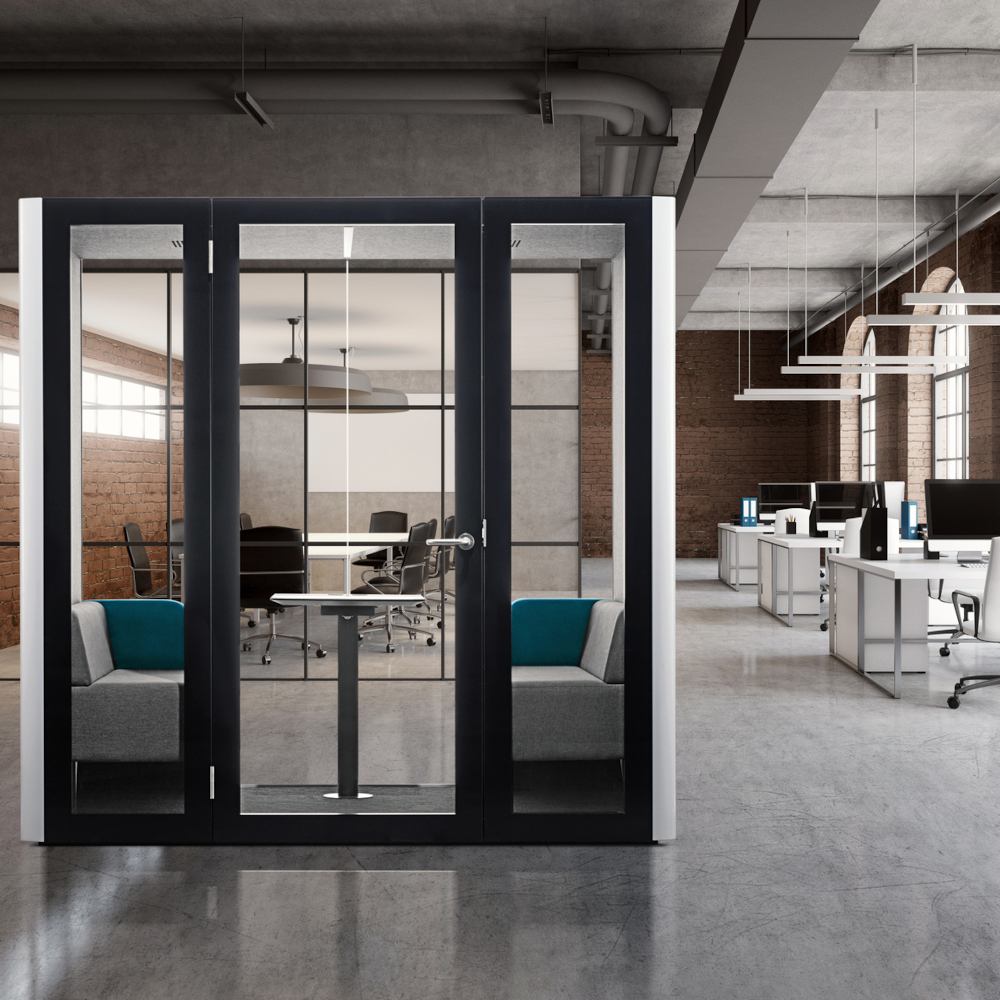

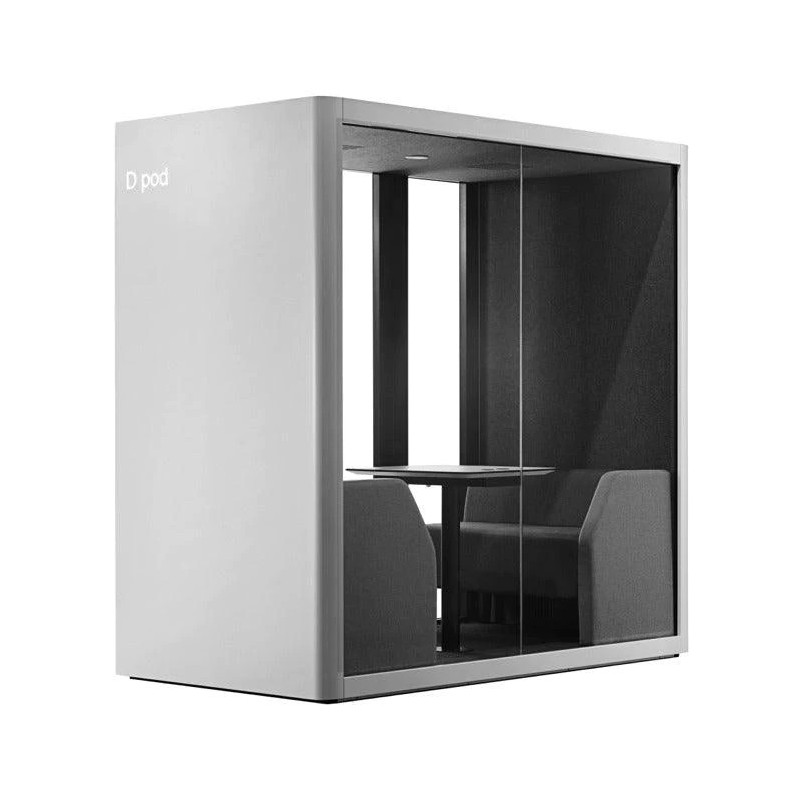

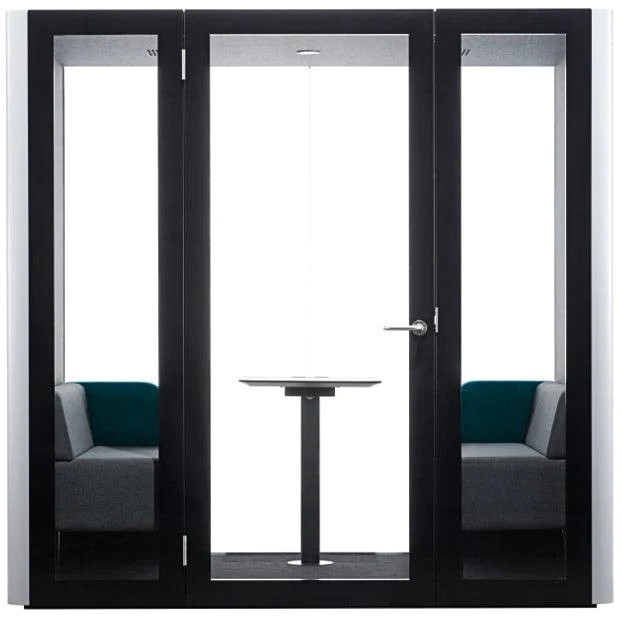

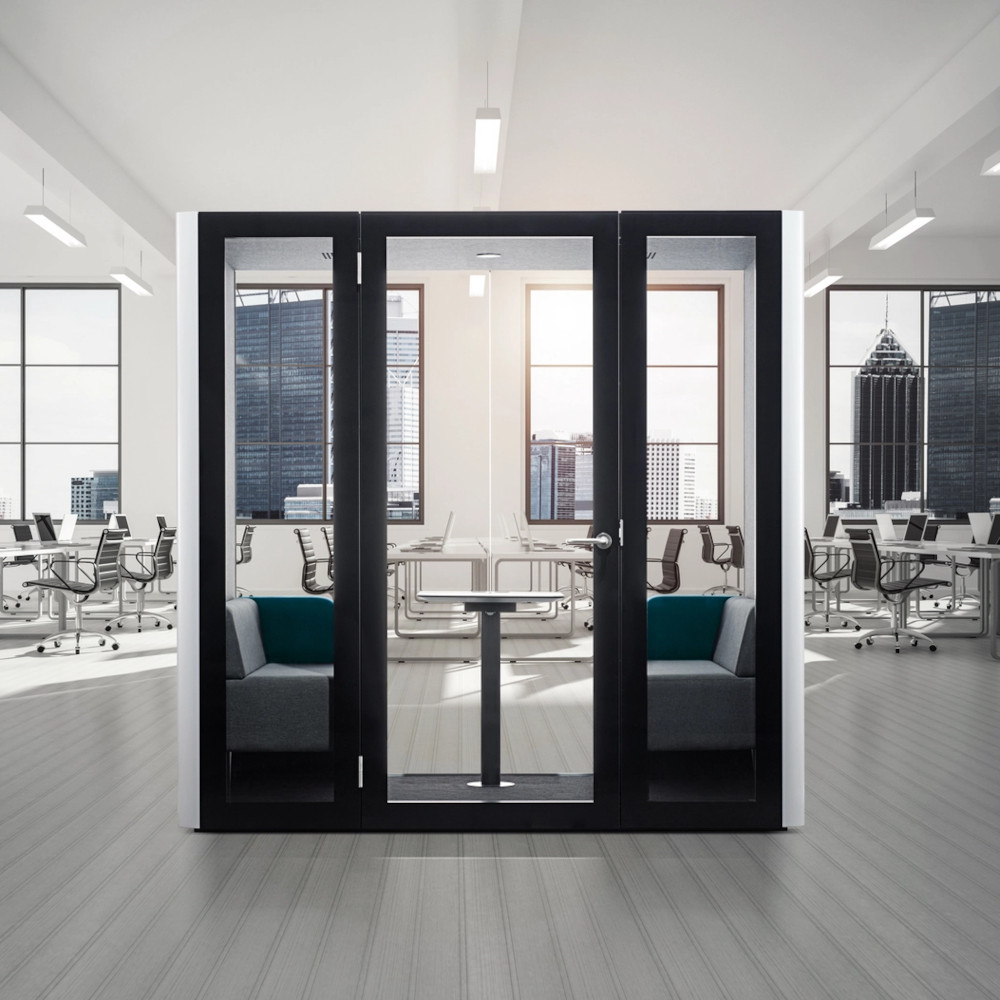

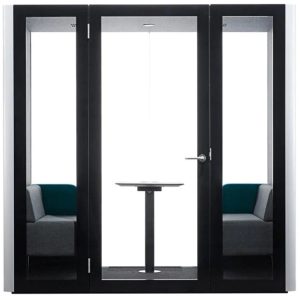

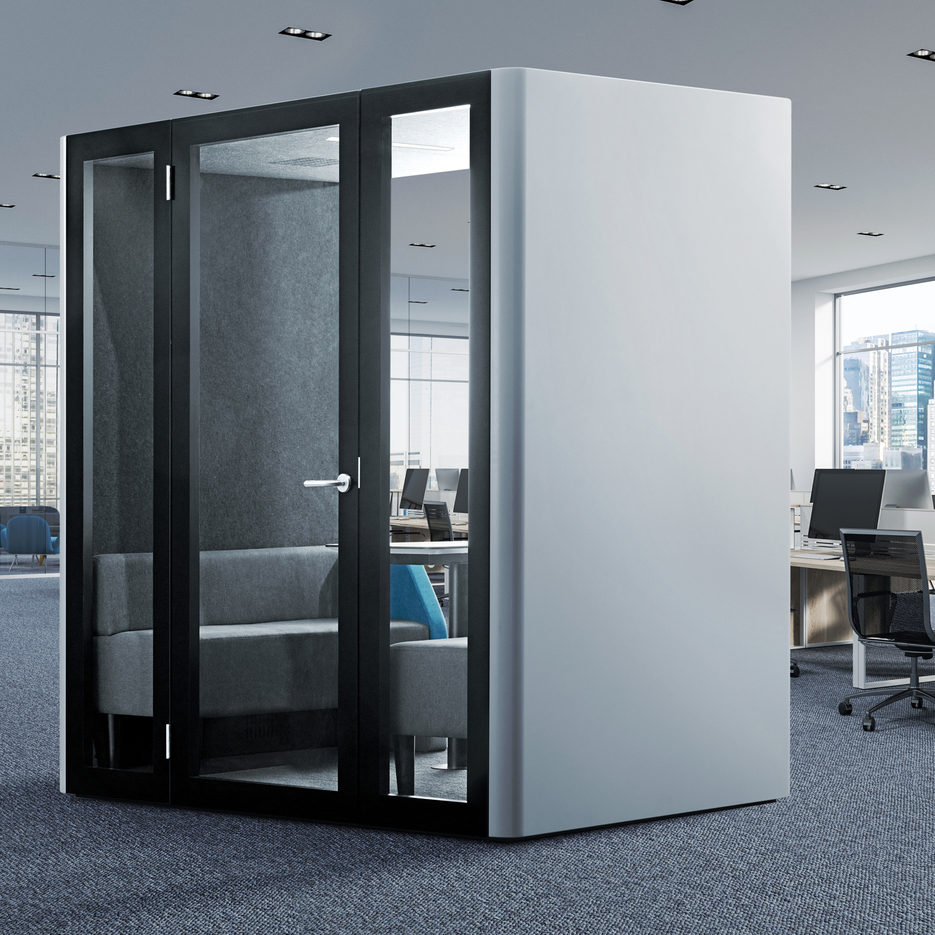

Inapod D Pod 1-4 Person Meeting Booth

The demand for more and more open plan work spaces has created the new challenge of maintaining privacy and quiet time for meetings and telephone calls. Inapods are the stylish modern solution to providing balance between open plan and closed work environments. Built with carefully selected materials with the best sound absorption these pods deliver a whisper quiet high acoustic rating. The Inapod D Pod was designed to provide private space suitable for 1-4 people for uninterrupted work, meetings and making important calls.

Comfortable and well ventilated space with great acoustic properties, resulting in increased employee efficiency and productivity. Power and connectivity are seamless, with continuous power supply for your gadgets and direct connection to your office network.

Key Features:

• Ideal for private phone calls and small group meetings
• Easy to assemble
• High acoustic rating
• Retractable and portable
• Energy efficient
• Comfortable and breathable
• 4 speed ventilation fans

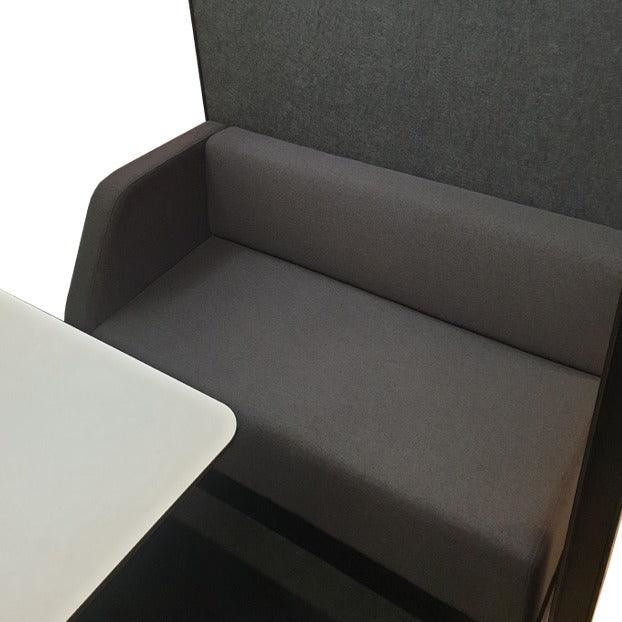

• Includes table and sofas

Product Features :

• Ease of assembly : Flat packed and can be up and running in 1.5 hours
• Comfortable and Breathable with well ventilated space
• Energy Efficient with sensor based on-off switch, external light in-use function and ventilation fan to ensure electricity consumption is as low as possible
• Retractable and Portable : Easily dismantled, moved and reinstalled. Integrated ball bearing to roll around allowing ease of mobility in any space.
• Highest Quality: Sophisticated automation machinery ensures consistency of quality, while robust construction using galvanized materials creates the finest quality.

Technical Features :

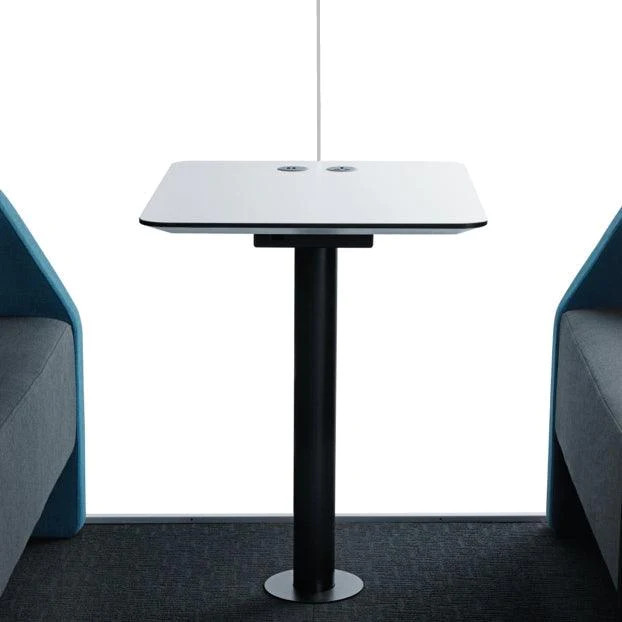

• Includes Laminated Table 700 mm x 550 mm
• Material: 1.2mm Electro Galvanise

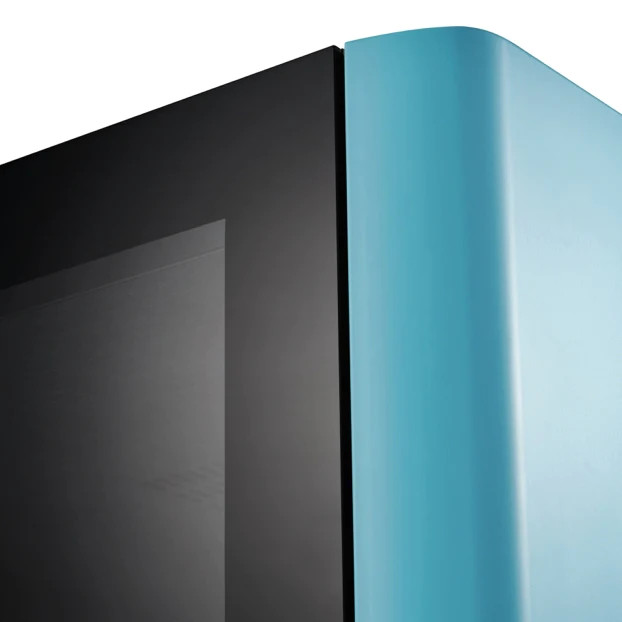

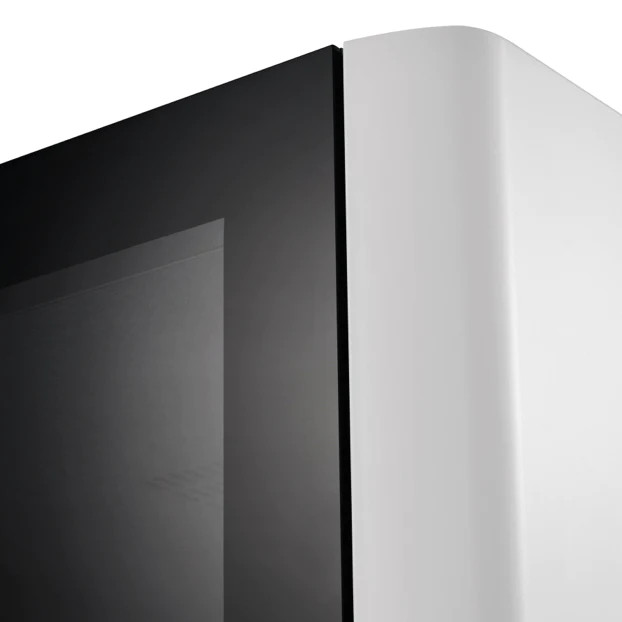

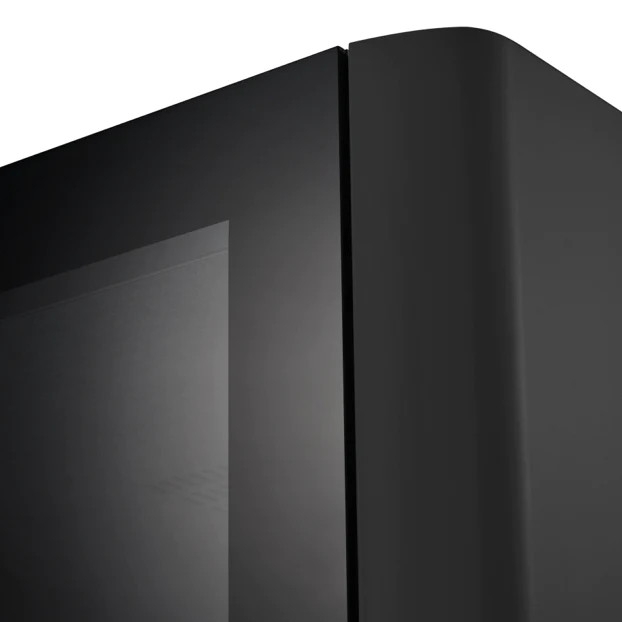

• External Finishing: Epoxy Powder Coating
• Internal Finishing: Polyester Fiber Acoustic Board
• Floor Finishing: Fiber Nylon Carpet in Black

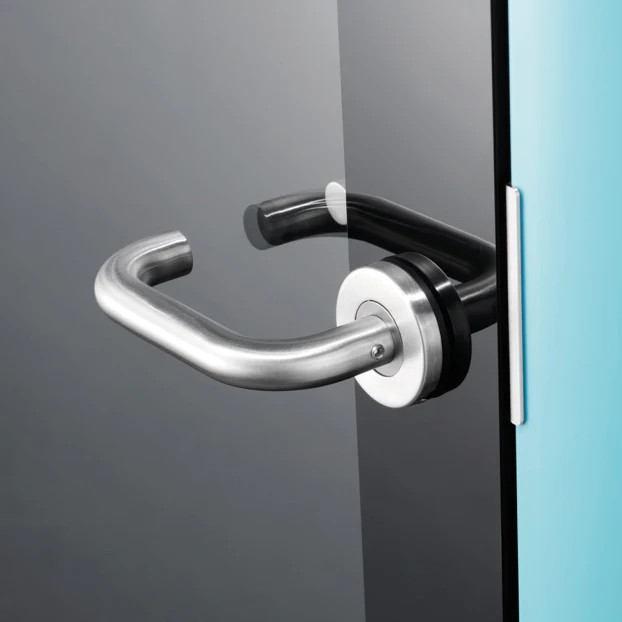

• Glass Door: Aluminum Frame Laminated Glass
• Rear Glass: 10mm Laminated Glass
• Table: Melamine Chipboard with Black Chamfered Edging

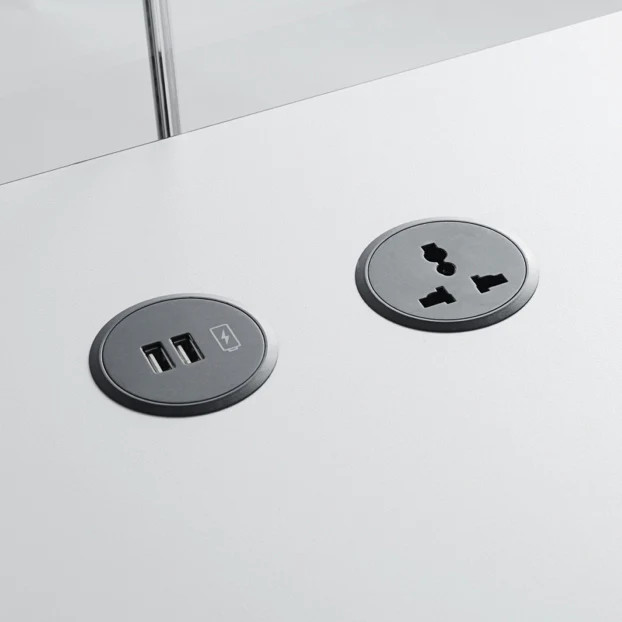

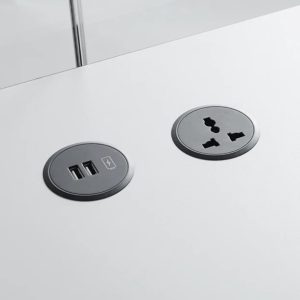

• Power Socket: 1 x AH Meyer Universal Socket (110/240Vac)
• USB Charger: 1no x Cat6

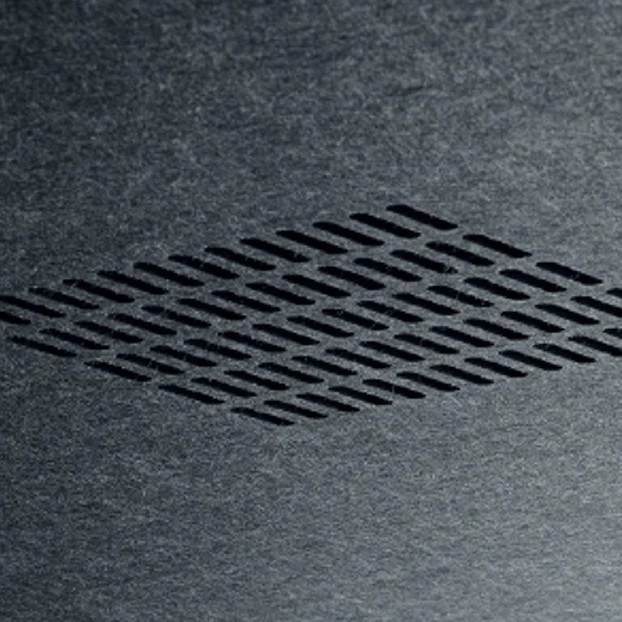

• Ventilation Fan: 4 x 12mm Dual Speed Bearing Ventilation Fan( 12Vdc)
• Sensor: 3 Customise Settings (15sec, 45sec & 5min) - 110/240Vac

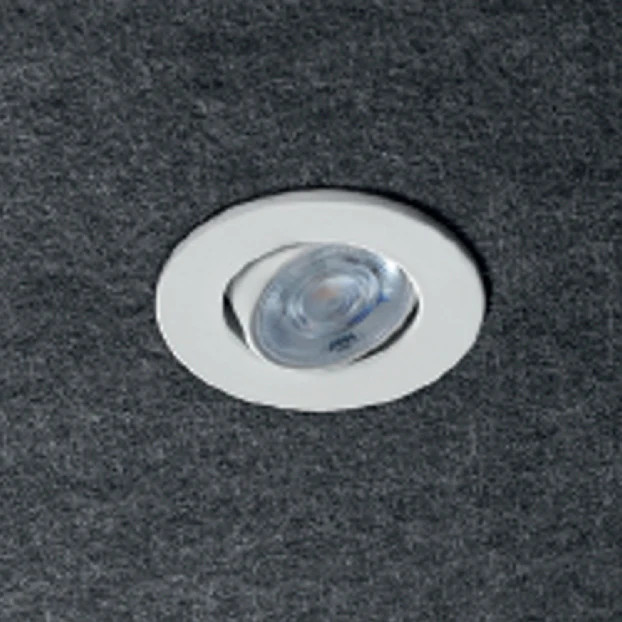

• Lighting: 1NO x 11W Recessed Led Strip 4000k C/W Wireless Dimmer System
• Airflow: 3.2m3/min
• Power Cord from Booth: 3 Metre from Right Side
• Acoustic Certification : Certified by TUV Singapore -32dB/NIC

Specifications:

• D POD - includes Sofas & Table
• Freight dimensions 2280 x 1000 x 1420h
• Cubic 3.24m3
• Packing Weight 630kg
• Net Weight 500kg
• Internal dimensions 2000 x 1120 x 2000h
• External dimensions 2200 x 1200 x 2000h
• Area 2.24m3

Warranty:

• 5 Year Warranty for body parts, external mechanism, except negligence during or after installation.
• 2 Year Warranty for electrical component.

Assembly Instructions:

• Assembly Instructions
