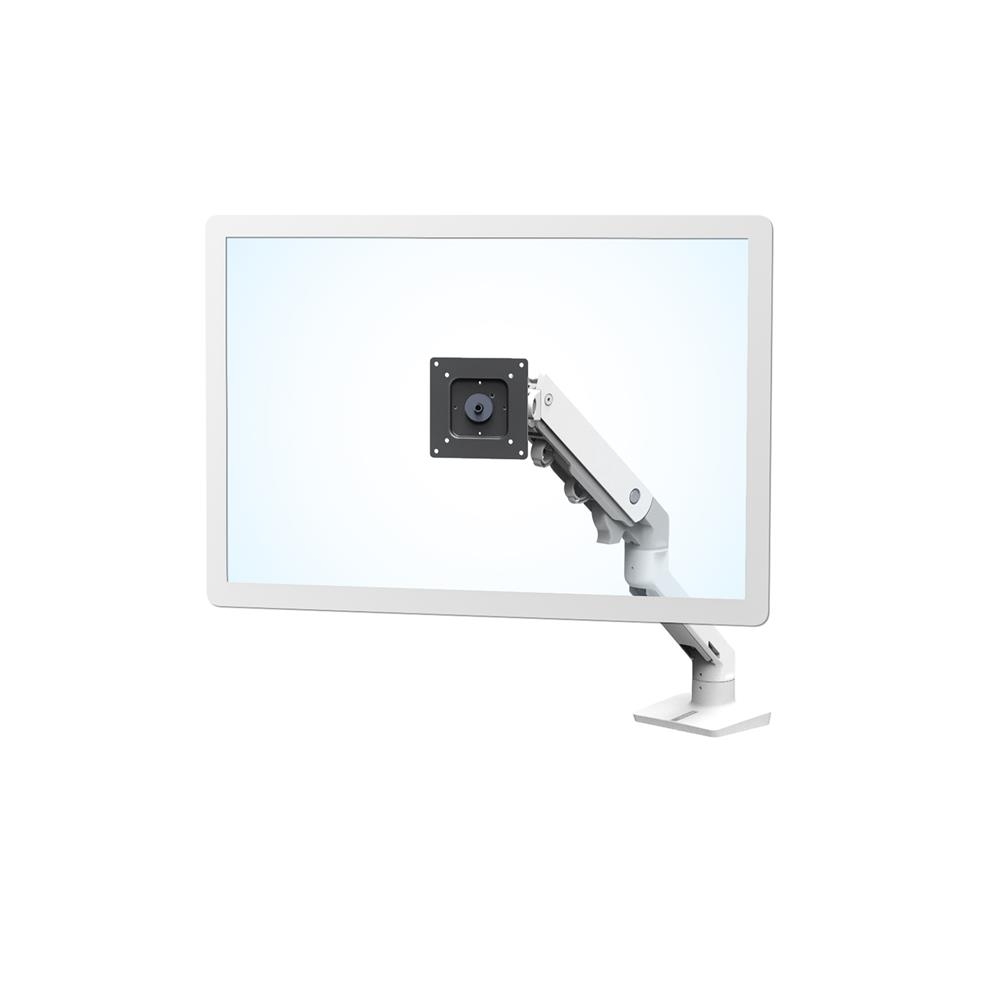

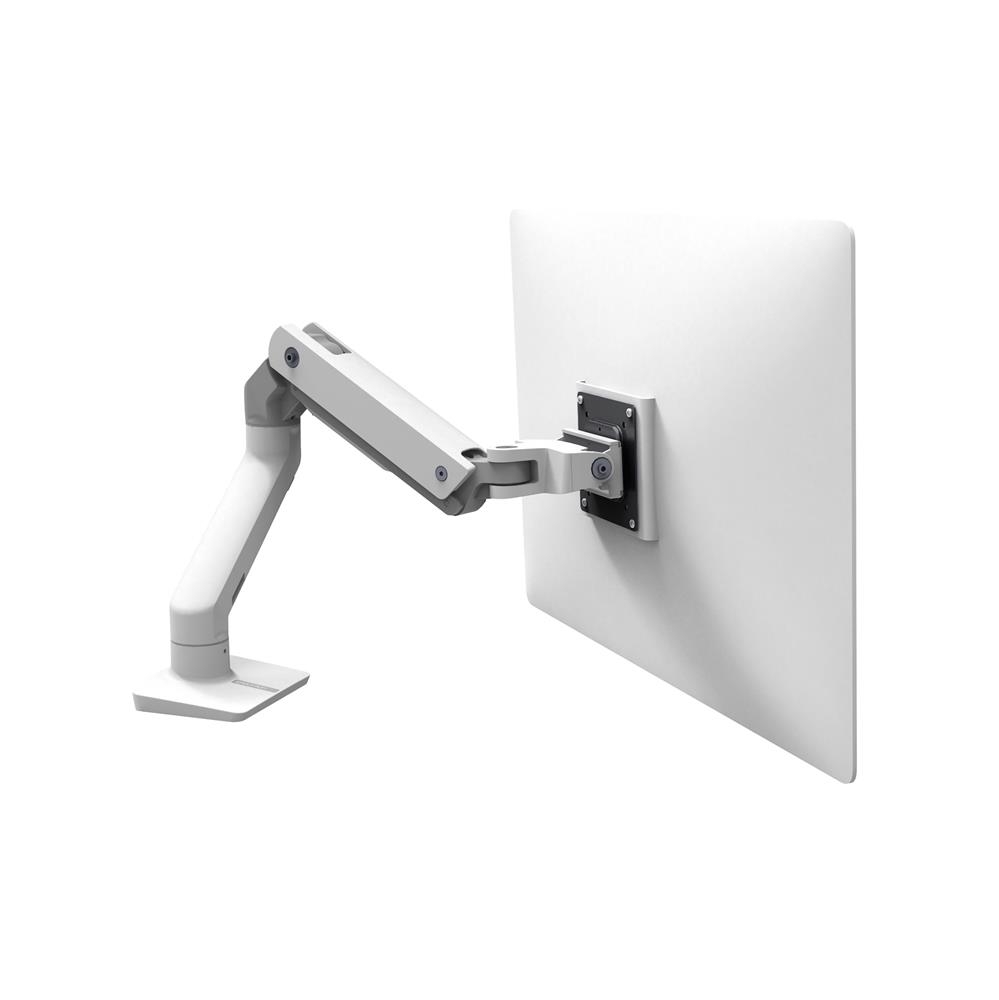

Ergotron HX Heavy Duty Single LCD Monitor Arm – White

Features & Benefits:

• Increases viewing comfort: Helps reduce eye, back and neck strain
• Sleek new post design
• Patented CF™ motion technology provides premium ease-of-use display adjustment
• Cable management feature routes cables tightly under the arm and through the extension, out of the way
• Eliminates scrolling: Rotate screen for portrait viewing of photos and documents
• Rotation-stop on base limits range to 180° and prevents monitor from making contact with wall
• Folding arm frees up space in constrained areas
• Upgrade this arm with the HX Triple Bow Kit to create a triple monitor arm
• Passes Ergotron’s 10,000-cycle motion test, which ensures years of trouble-free height adjustment

Specifications:

• Part Number: 45-475-216 (white)
• Description: HX Desk Monitor Arm
• Includes arm, extension, monitor pivot, desk clamp, grommet mount and monitor mounting hardware
• Arm folds back over the base into a compact retracted position; perfect for tucking under systems furniture storage shelves or cabinets in space constrained areas
• Portrait/landscape rotation with lockout
• Streamline cable management that routes cables under arm and within extension

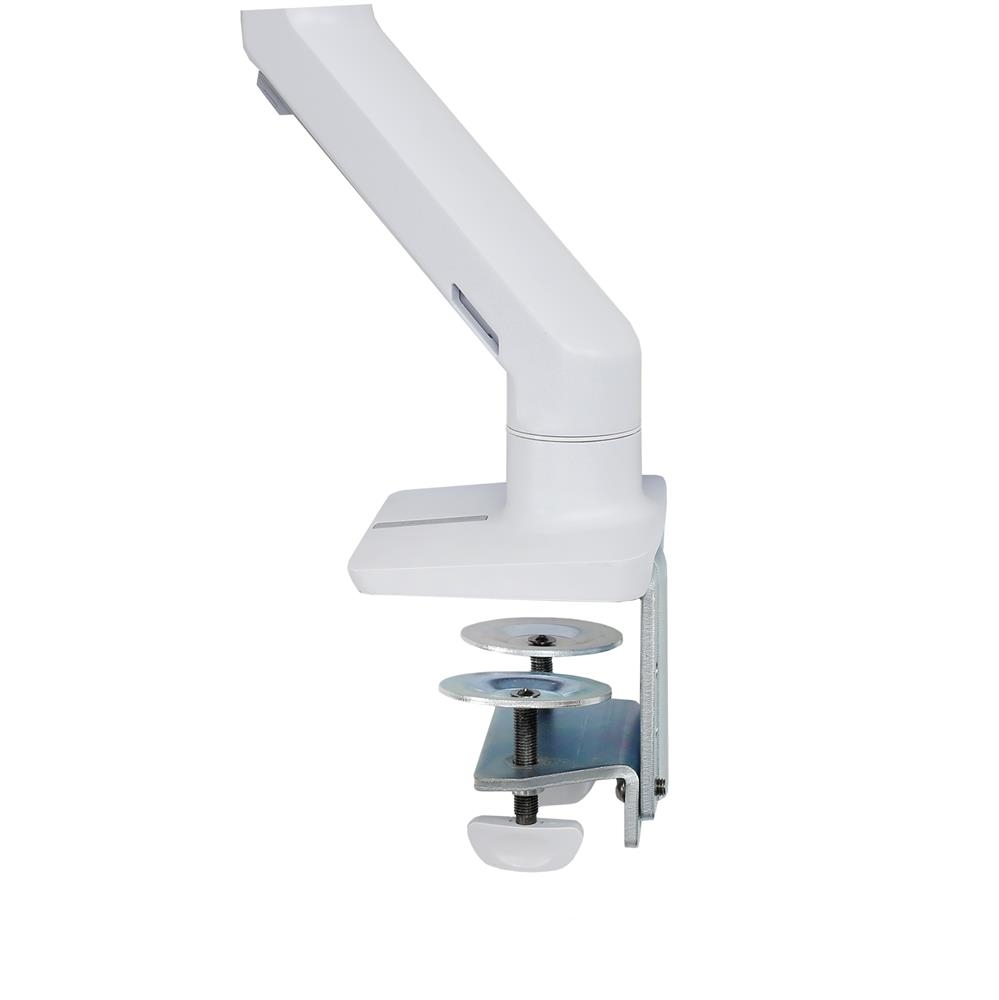

• Desk clamp attaches to surface edge .4" to 2.4" (1 to 6 cm) thick
• Grommet mount attaches through surface holes
• Clamp base ensures greater stability of display and arm
• * Monitor can be rotated 360° at connection point of arm and extension; rotation is restricted to 180° at connection point of extension and base
• ‡ Mounting Standards: VESA MIS-D, 75/100 (hole pattern = 100 x 100 mm & 75 x 75 mm), MIS-E (hole pattern = 200 x 100 mm), MIS-F (hole pattern = 200 x 200 mm ONLY). Optional VESA Bracket Adaptor Kit (97-759) can be ordered separately for MIS-F interface with hole pattern of 400 x 200 mm, 400 x 300 mm or 400 x 400 mm
• Maximum screen size determined by the monitor weight
• Weight Capacity: 20–42 lbs (9.1–19.1 kg)
• † Tilt Range: 70° backward, 5° forward
• This product is certified in compliance with indoor air quality standards defined by ANSI/BIFMA pertaining to emissions of VOC (volatile organic compounds)
• Product Weight: 15.25 lb (6.9 kg)
• Shipping Dimensions: 12" x 19.2" x 7" (30.5 x 48.8 x 17.8 cm)
• Shipping Weight: 18.3 lbs (8.3 kg)
• Warranty: Ten (10) years
