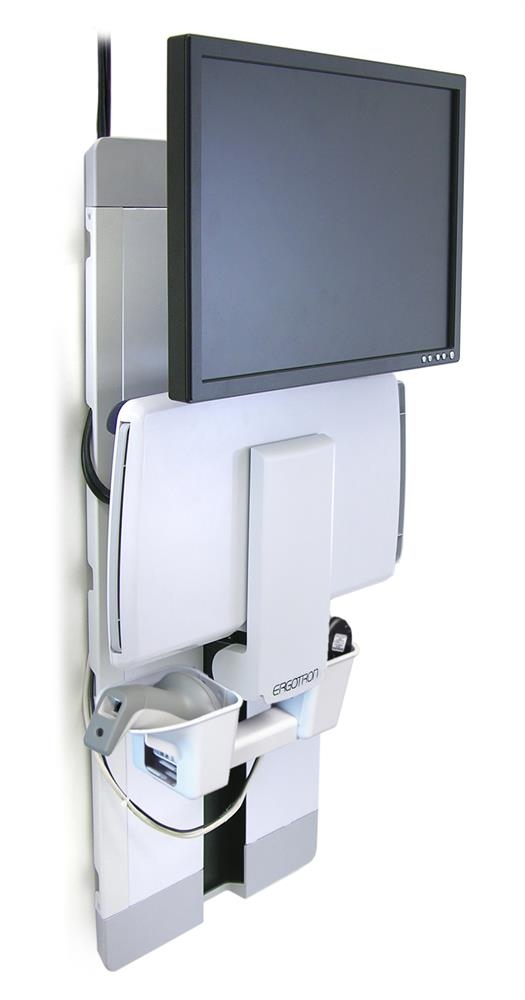

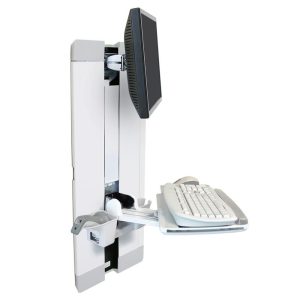

Ergotron StyleView Vertical Lift Patient Room

Low-Profile Keyboard & Monitor Mount

Features & Benefits:

• Side-to-side pan of keyboard and display promote patient caregiver interaction while access data
• Slide-out Keyboard Tray can extend out an extra 5" (13 cm) for comfortable data entry
• With the keyboard folded up, total system depth is as little as 4.5" (11 cm)
• Ergonomic back-tilt keyboard tray with left or right mouse tray ensures wrists remain in a neutral position during data entry
• Patented counterbalance system provides smooth adjustment while maintaining touch-screen stability
• 9" (23 cm) vertical adjustment enhances ergonomics for multiple users
• Steel construction for long-lasting durability
• Right- or left-side cable management system conceals and organizes cords and makes cleaning a snap!

Specifications:

• Part Number (color): 60-609-216 (white),
• Description: StyleView Vertical Lift, Patient Room version
• Includes mouse pad, wrist rest, mouse pouch, scanner holder
• † Larger display sizes may inhibit the keyboard tray folding flat in storage position. See Dimensional Illustrations for details
• * Weight Capacity: Listed weight capacity represents total load, including both the monitor and contents of keyboard tray. Maximum monitor weight = 25 lbs (11.3 kg); monitor thickness greater than 3" (7.6 cm) may decrease capacity
• Mounting Standards: VESA FDMI MIS-D, 100/75 (hole pattern: 100 x 100 mm & 75 x 75 mm)
• ‡ Monitor pans left/right up to 50° (varies per size of monitor)
• Fold-down keyboard with built-in mouse pad surface
• Keyboard tray extends out up to 5" (127 mm) inches when in use
• Keyboard tray pans left/right up to 120°
• Back-tilt keyboard tray adjustable (0 to -10 degrees)

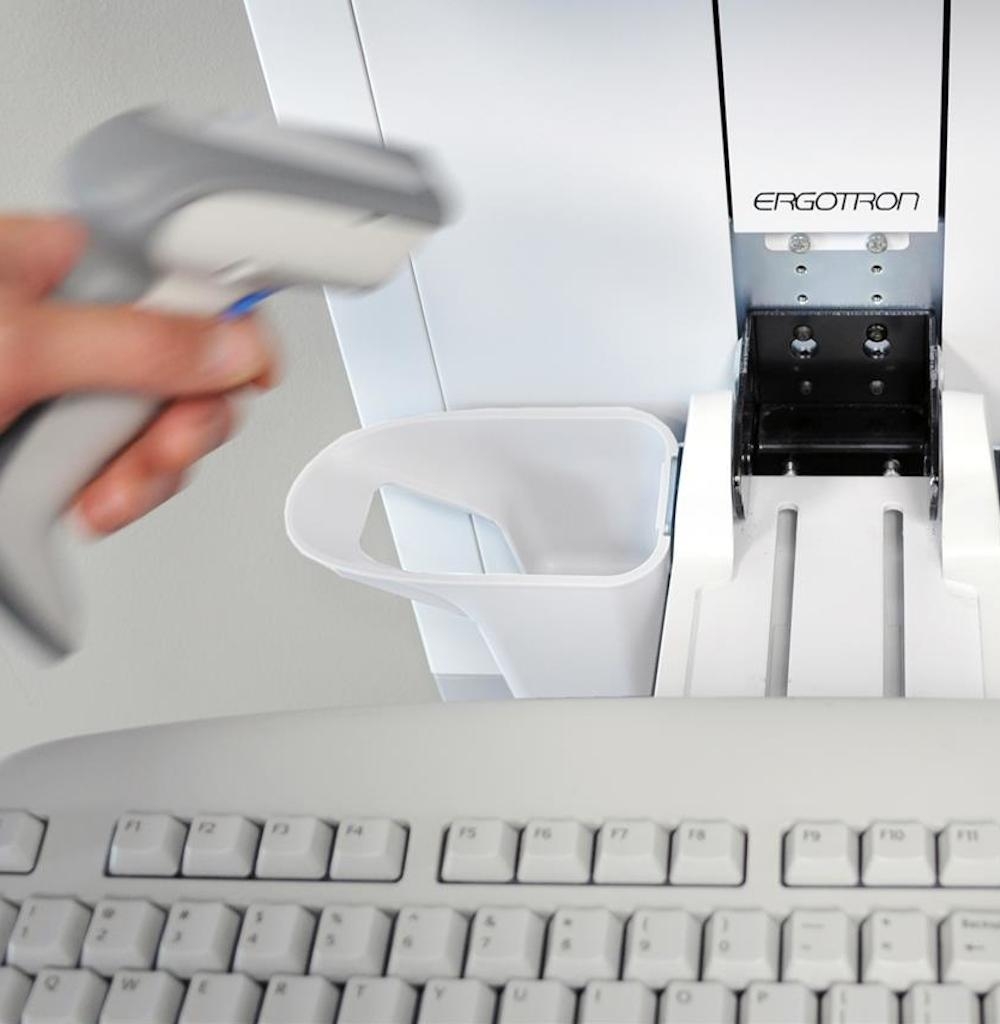

• Scanner and mouse holder integrated into the keyboard tray
• Integrated cable management system can be configured on either side
• Easy-to-clean exterior
• Shipping Dimensions: 39.5" x 16" x 10.75" (1000 x 406 x 273 mm)
• Shipping Weight: 35.5 lbs (16.1 kg)
• Warranty: Five (5) years
