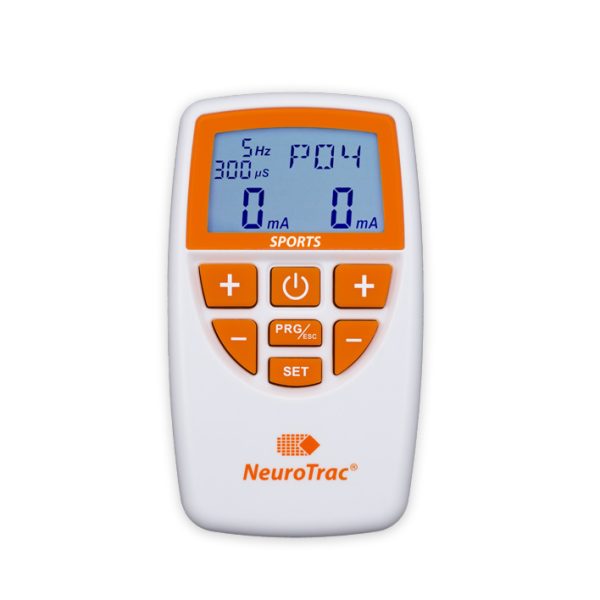

Verity NeuroTrac TENS Unit

The NeuroTrac® TENS is a compact, dual-channel digital device designed to deliver effective pain relief through customizable electrical stimulation.

It’s ideal for both clinical and home use, offering a user-friendly interface and versatile treatment options.

🩺 Product Introduction: NeuroTrac® TENS

The NeuroTrac® TENS is a versatile transcutaneous electrical nerve stimulation unit engineered for targeted pain management. Designed with simplicity and precision in mind, it features dual isolated channels, allowing independent control over two treatment areas. With 11 preset programs and 3 customizable modes, users can tailor therapy to suit a wide range of conditions—from acute injuries to chronic discomfort.

Its bright backlit LCD screen ensures visibility in low-light environments, while the large keypad buttons enhance usability for patients and practitioners alike. The device supports multiple stimulation modalities, including high and low frequency, burst, continuous, and modulated waveforms. A built-in lock mode tracks usage compliance, making it ideal for clinical monitoring or home rehabilitation.

Compact and lightweight, the NeuroTrac® TENS is built for portability without compromising performance. It delivers constant current output with a maximum amplitude of 80 mA and features advanced safety functions like open electrode detection and low battery indicators. Whether used in a professional setting or at home, this unit offers reliable, customizable relief with intuitive controls and robust engineering.

Let me know if you'd like a version tailored for e-commerce, clinical brochures, or patient education.

Specifications:

• Dual channel: individually isolated circuits.
• Amplitude: 0 – 80 mA into 500 Ohm load; indication only. Actual mA will tend to be less than indicated due to electrode impedance: at 1000 Ohms load (Electrodes in poor condition) the maximum will be limited to 70 mA, at 1500 Ohms load the maximum will be limited to 65 mA.
• Type: Constant Current, maximum output voltage 180 Volts +10 / -30 Volts
• Waveform: Asymmetrical, rectangular bi-phasic with zero DC current.
• Selectable pulse width: 50mS -300mS [2% accuracy].
• Pulse Rate selection: in the continuous mode 2 Hz – 200 Hz [2% accuracy].
• Mode: Continuous, Burst or Modulated.
• Burst mode: Bursts of 9 pulses [200 mS] at 150 Hz, repeating twice every second.
• Modulation mode: 6-second cycle of concurrent width modulation and pulse repetition rate modulation. Width starting at 200 mS and decreasing exponentially to 100 mS in three seconds and then returning back to 200 mS in the next three seconds. Rate starting at 100 Hz, decreasing exponentially to 65 Hz and then returning to 100 Hz.
• Time duration of the treatment selectable: 1 minute to 12 hours.
• Low Battery Indicator: If the battery goes below 6.9 volts +/- 0.2 volts the battery symbol will flash on/off once every second.
• If the battery voltage is below 6.6 (+/- 0.2) volts the unit will not turn on.
• Open Electrode Detect: If an open circuit is detected at the output of channel A or B the output current will be reset at zero.

Physical dimensions: 119.2 x 69 x 28.7 mm

Weight: 0.07KG without battery, 0.1KG with battery.

Environmental Conditions for use:
+5 to +40 degrees Centigrade. 15-90% Humidity.

Environmental conditions for storage & transport:
-25 to +70 degrees Centigrade. 15-90% Humidity.

Accessories supplied with this device:

Dual lead wire x 2
Self adhesive electrodes (50 x 50 mm)
9V PP3 battery
Soft bag
Operating Manual

Warranty

Two (2) years
